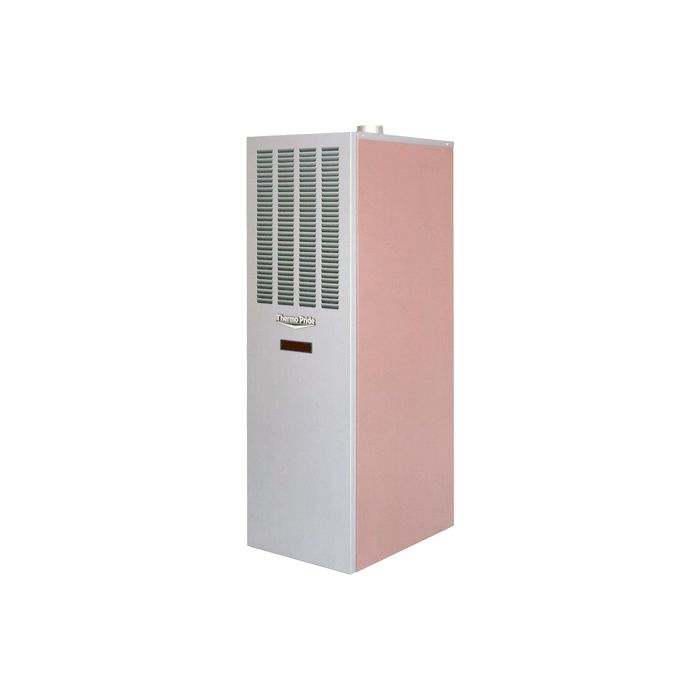

Gas Furnace 95% CMA4-50D36N
SKU
1560001
Mobile Home Gas Furnaces
95% CMA3 Downflow Mobile Home PSC Gas Furnace
- Aluminized steel primary heat exchanger and stainless steel secondary heat
exchanger - 22 Gauge powder-coated cabinet
- Silicon nitride igniter for quiet and consistent light-off
- 4-Speed direct drive PSC blower
- Concentric vent kit available using existing roof jack and standard base
- PVC Venting
- Sliding easy-access panel to vent pipes
- Electrical: 115-1-60
- Made in the USA
- AHRI Certified
- cETLus Listed
- Limited warranty:
- Lifetime limited warranty on heat exchanger
- 10-Year limited warranty on parts
Part # | Mfg # | Nominal Blower Approx BTUH Output Blower Dimensions Dimensions Ship Heat BTUH AFUE CFM H x W x D W x D Wt |
| 1560001 | CMA3-50D36N | 50,000 48,000 95% 1162 57" x 18" x 25-3/4" 9" x 12" 175 lbs |
| Depth | 25-3/4" |
|---|---|
| AFUE | 95+% |
| BTU | 50,000 |
| Inpt Btuh | 50,000 |
| Output BTU Heat | 48,000 |
| Rated AFUE | 95% |
| Width | 18" |
| Height | 57" |
| Dimensions | 57" x 18" x 25-3/4" |
| Voltage | 115V |
